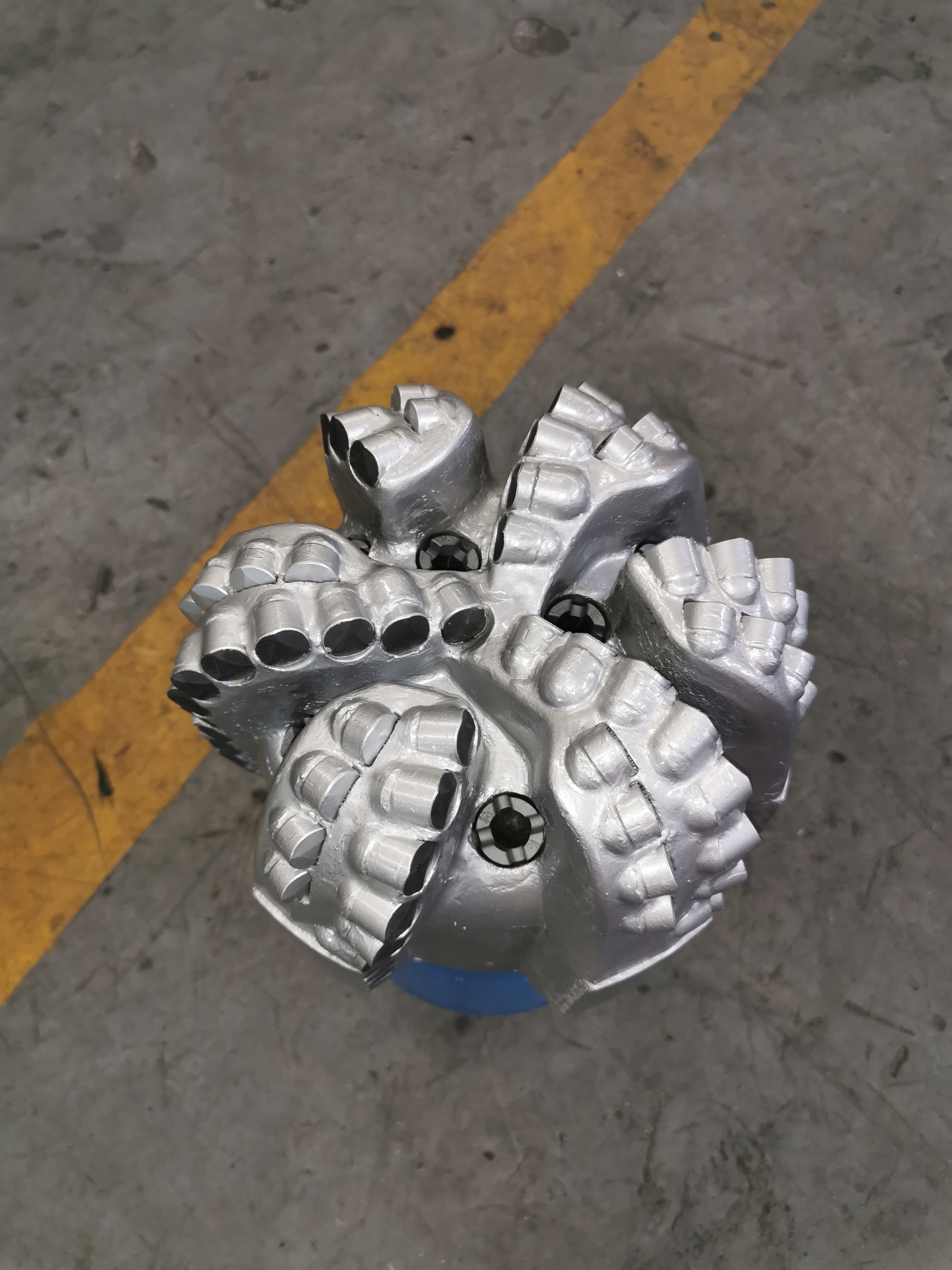

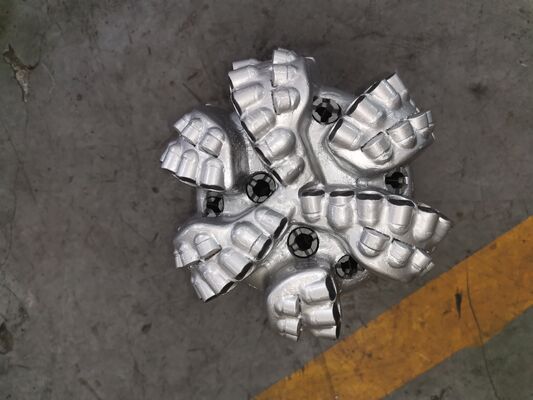

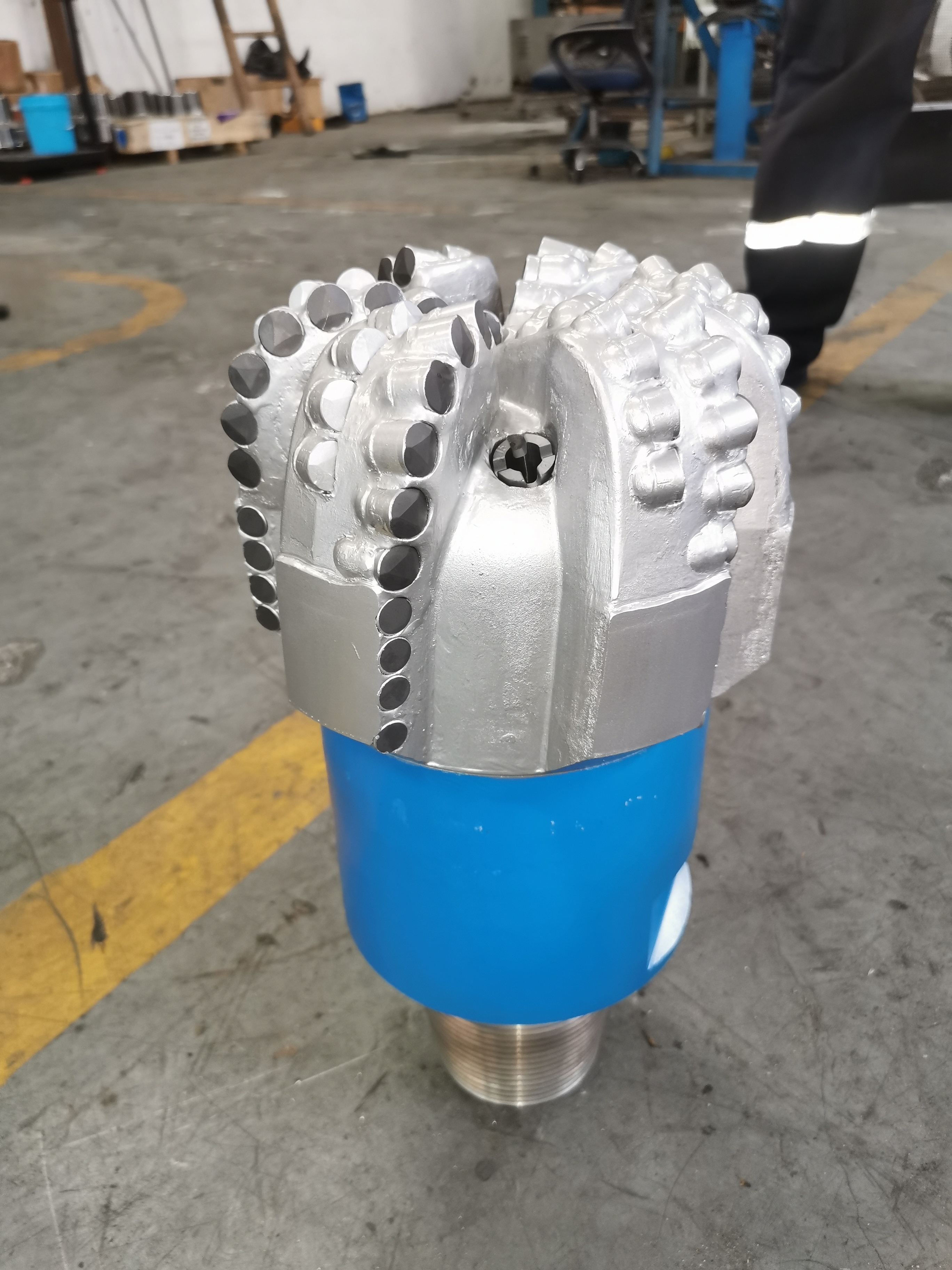

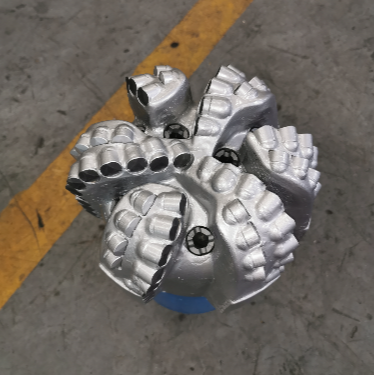

8.5 Inch (215.9mm) M616 PDC Matrix Body Oil Well Drilling Bit
Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp hỗ trợ trực tuyến 24 giờ.
xThông tin chi tiết sản phẩm
Mô tả sản phẩm
PDC Drill Bits Classification by Applications:
Mining Industry
There are some 3-blade PDC bits mainly used for the mining industry in Australia and Russia, the formation is very soft. choosing a steel body PDC bit can save some drilling costs.
Water well drilling
Having higher ROP, diamond PDC drill bits are also widely used as water well drill bits for geothermal drilling.
Oil & Gas drilling
- It is the most widely used bit in the Oil &Gas drilling. Hydraulic factors are very important during drilling.
- PDC bits have been used in the areas that can't be available previously, such as harder, more abrasive, and more variable formations.
- The diamond PDC bit is mainly composed of the bit body, cutting teeth, nozzle, gauge protection, and API Thread connection.
| IADC Code | M323 |
| Body type | Matrix Body |
| Blade Count | 6 |
| Primary Cutter Size | Ф16 mm |
| Nozzle | N50 |
| API Connection | 4-1/2" REG |
| Make Up Length | 278 mm |
| Weight | 80 KG |
| RECOMMENDED OPERATING PARAMETERS | |
| Make-Up Torque | 16-22 KN.M |
| Weight-on-Bit | 22~112 KN |
| Rotary Speed | 100～DHM |
| Flow Rate | 28～38 LPS |
Cutter
The primary contact point of a drill bit is its PDC cutters, which are made of Polycrystalline Diamond Composite (PDC).
PDC bits excel at efficiently removing rock by chopping through it.
Operating in a challenging environment, PDC cutters experience frequent heating and cooling within the well.
To maximize performance, PDC cutters with superior thermal stability and minimal thermal deterioration are preferred.
These optimized cutters demonstrate higher Rate of Penetration (ROP) and enhanced wear resistance.
Nozzle
Drill bit nozzles play a crucial role in maintaining the temperature of the PDC cutters and clearing the cutting zone.
By keeping the PDC cutters cool, the nozzles contribute to their longevity and performance.
The positioning and angle of these nozzles significantly influence the effectiveness of the drill bit. Properly placed nozzles ensure efficient cooling and help prevent heat-related issues.
Additionally, the strategic arrangement of fluid channels, in conjunction with the nozzle location, facilitates improved removal of cuttings during drilling operations.
Production Processes:
Certifications:
Package & Shipment:
FAQ:
| Q: You are a trading company or manufacturer ? |
| A: Manufacturer, We are a 100% real factory with over 10 years' experience in water/oil/gas wells Drill Bits. |
| Q: How about your products ? |
| A : Both of tricone bits and PDC bits strictly conform to API 7 requirements and ISO9001. we will do kinds inspections before delivery, also cover for after-sales service. |
| Q: Package Methods ? |
| A: Normally wooden case, also can be steel box; can be customized if need. |
| Q: Payment Terms ? |
| A: we accept T/T, L/C, Paypal, Western Union, etc. |
| Q: Can I visit your factory ? |
| A: Yes, we welcome you to our factory all the time, will send invitation letters if need; also can show our workshop and warehouse online. |
